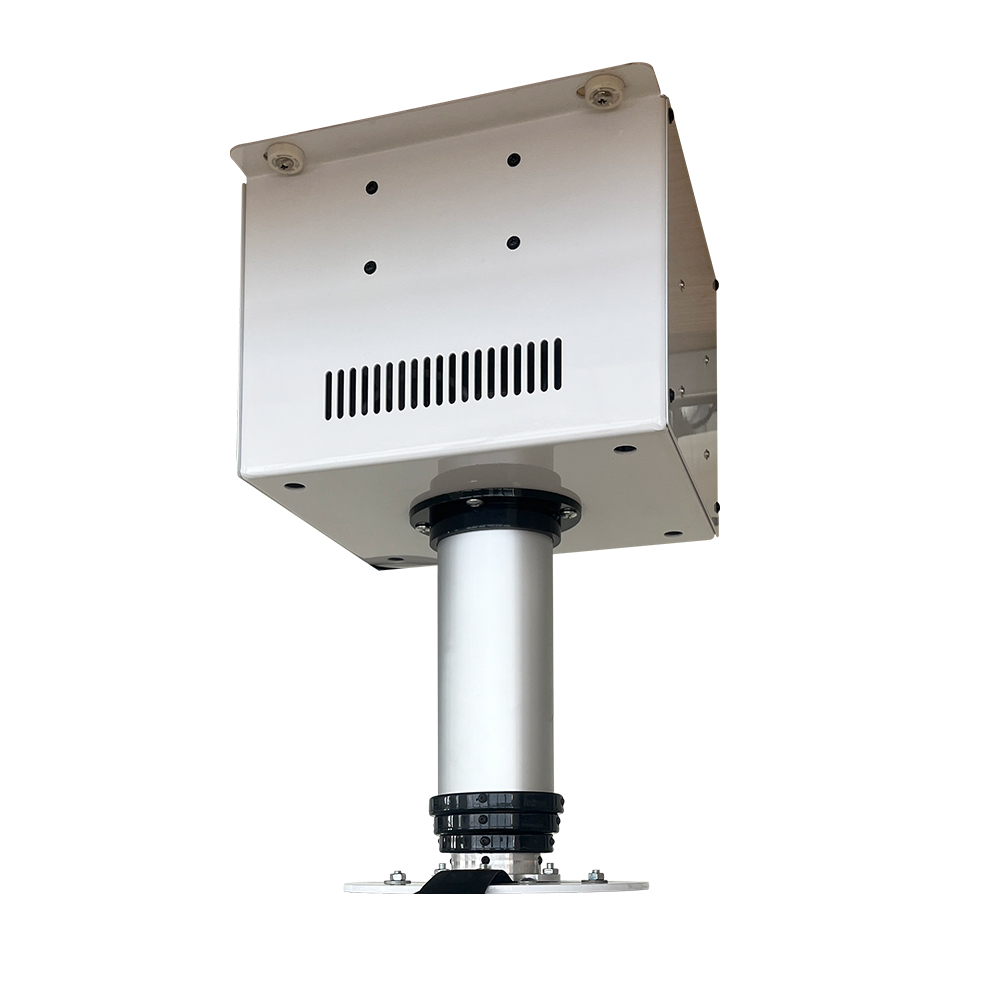

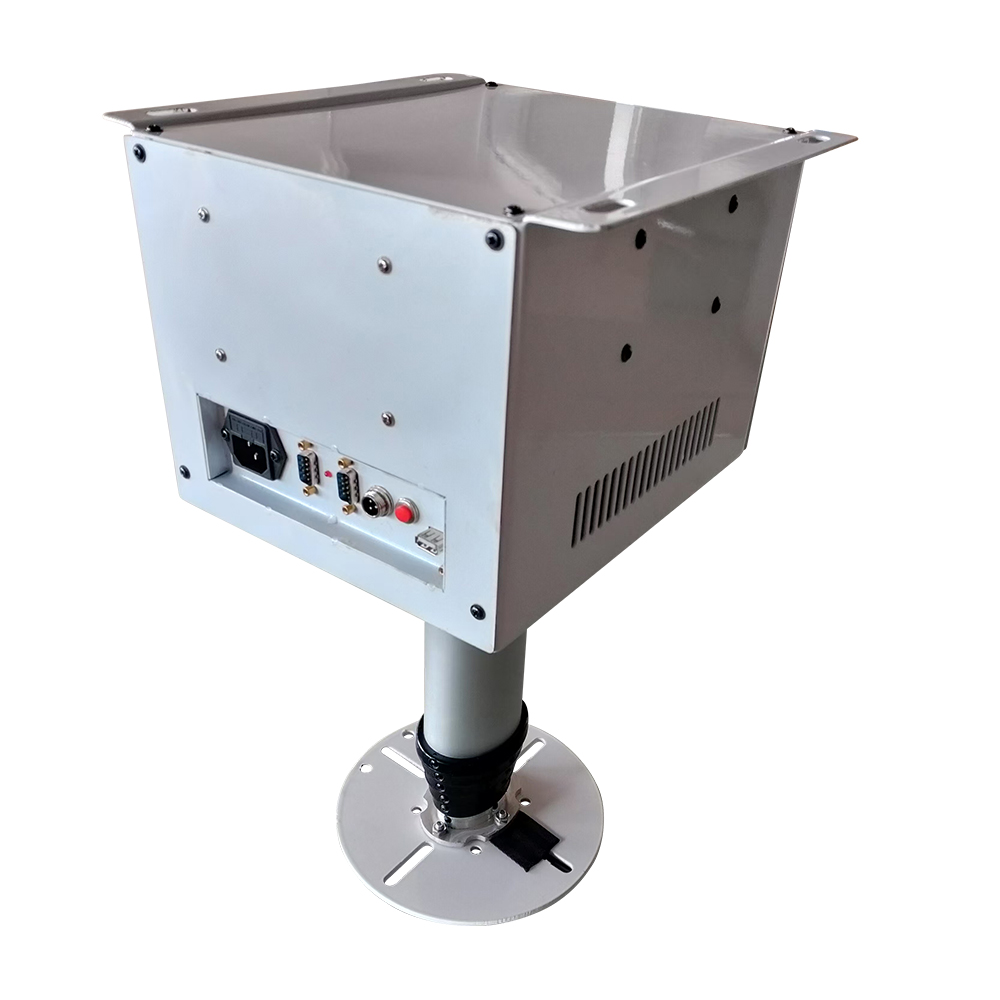

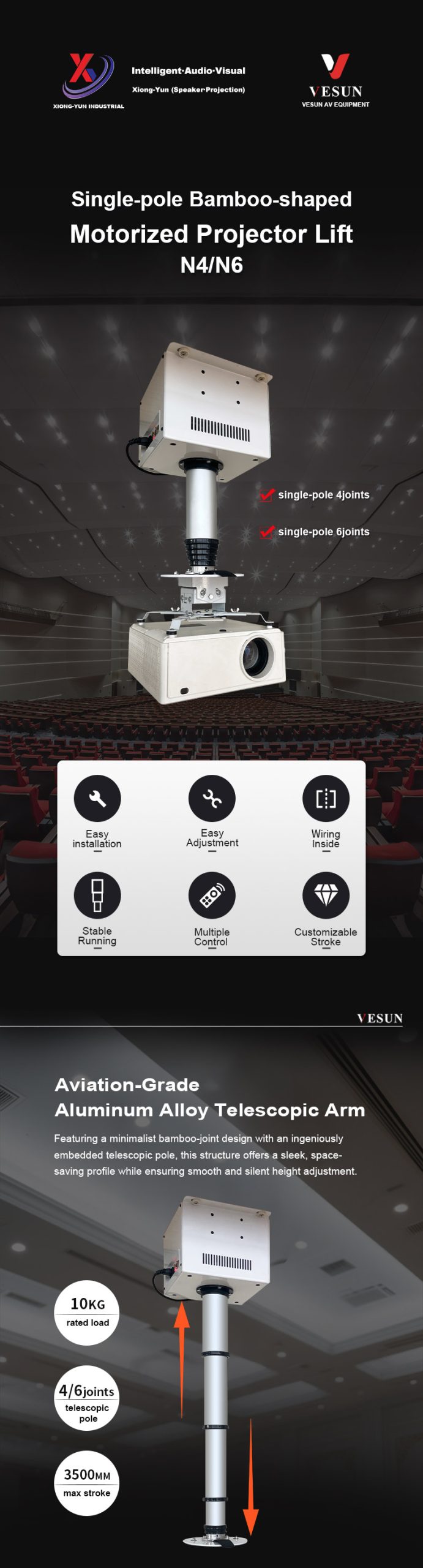

Single-pole bamboo-shaped motorized lift with 4 joints 6 joints for projectors and monitoring cameras N4/N6
It is a modular lifting device designed with a telescopic structure resembling bamboo segments, mainly used for projectors and monitoring cameras. Driven by an electric motor, it offers smooth lifting, precise positioning, and strong load-bearing capacity.

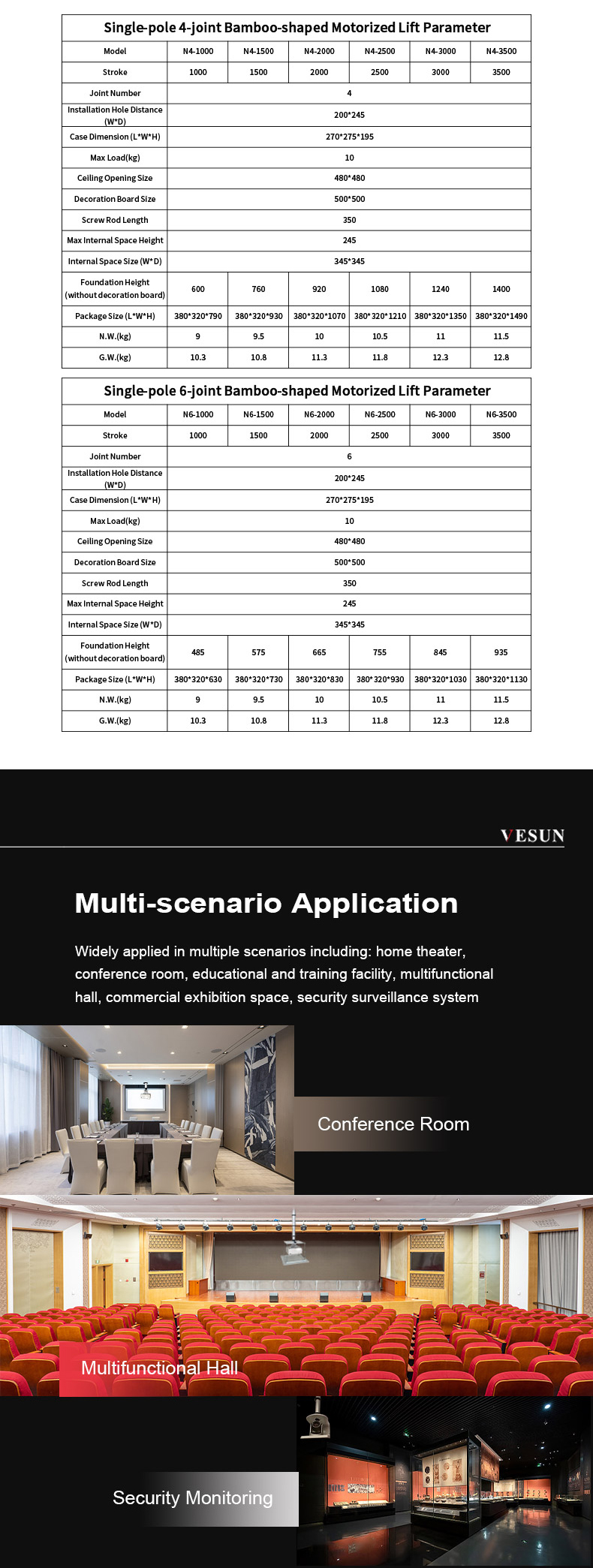

Specifications
| Type | single-pole | Model | N4/N6 |
| Stroke | 1000/1500/2000/2500/3000/3500mm | Joint Number | 4 joints / 6 joints |
| Installation Hole Distance(W*D) | 200*245mm | Case Dimension (L*W*H) | 270*275*195mm |
| Max Load | 10kg | Ceiling Opening Size | 480*480mm |
| Decoration Board Size | 500*500mm | Screw Rod Length | 350mm |
| Max Internal Space Height | 245mm | Internal Space Size (W*D) | 345*345mm |
Features

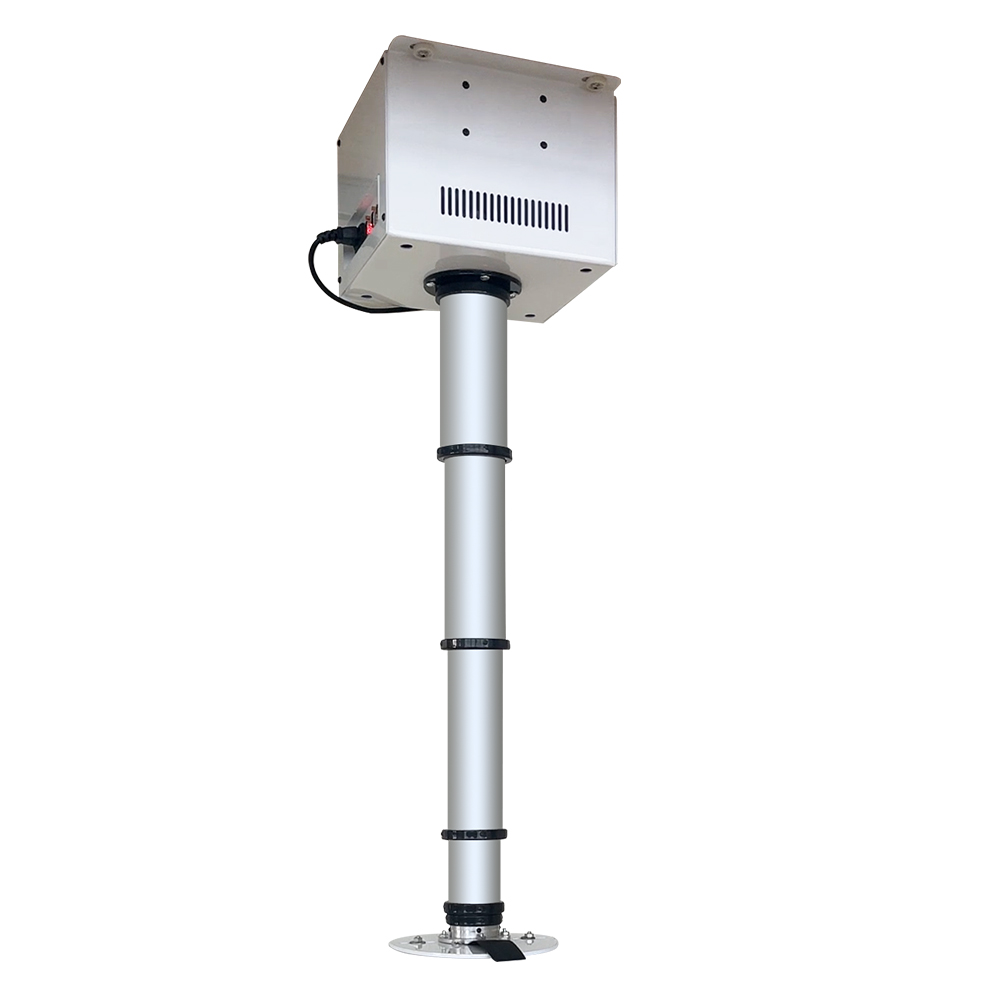

1. Modular Telescopic Design: Bamboo-like segments allow flexible height adjustment.

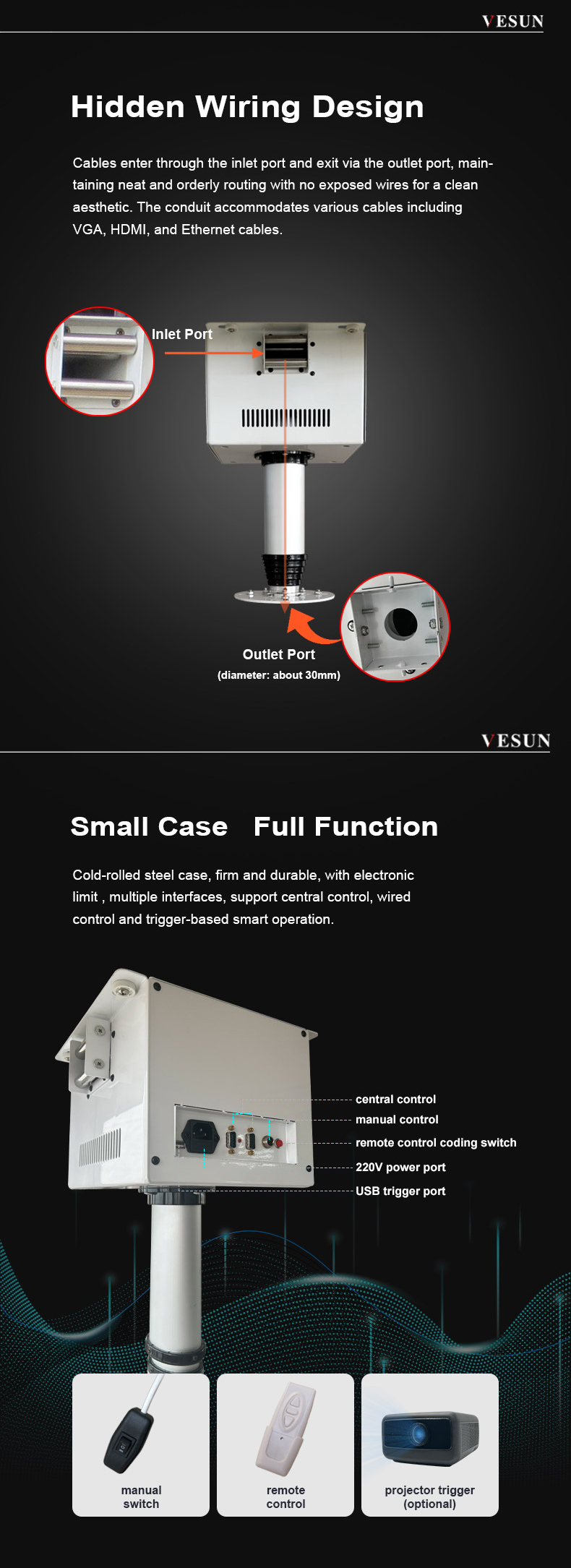

2. Internal Cable Management: Pre-installed channel for VGA, power, and network cables.
3. Precision Electronic Positioning: Enables accurate control of lifting travel via remote control or central control system.

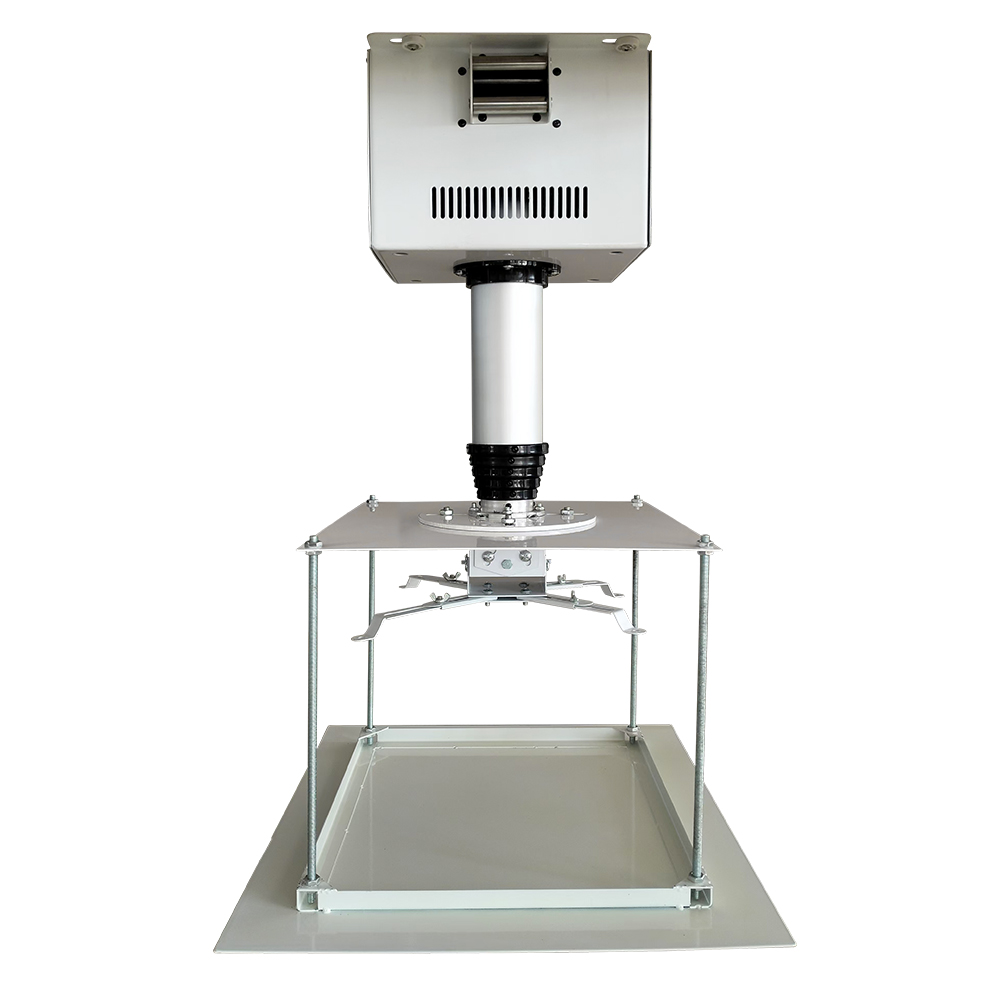

4. Concealed Installation: Decorative panels for seamless hiding.

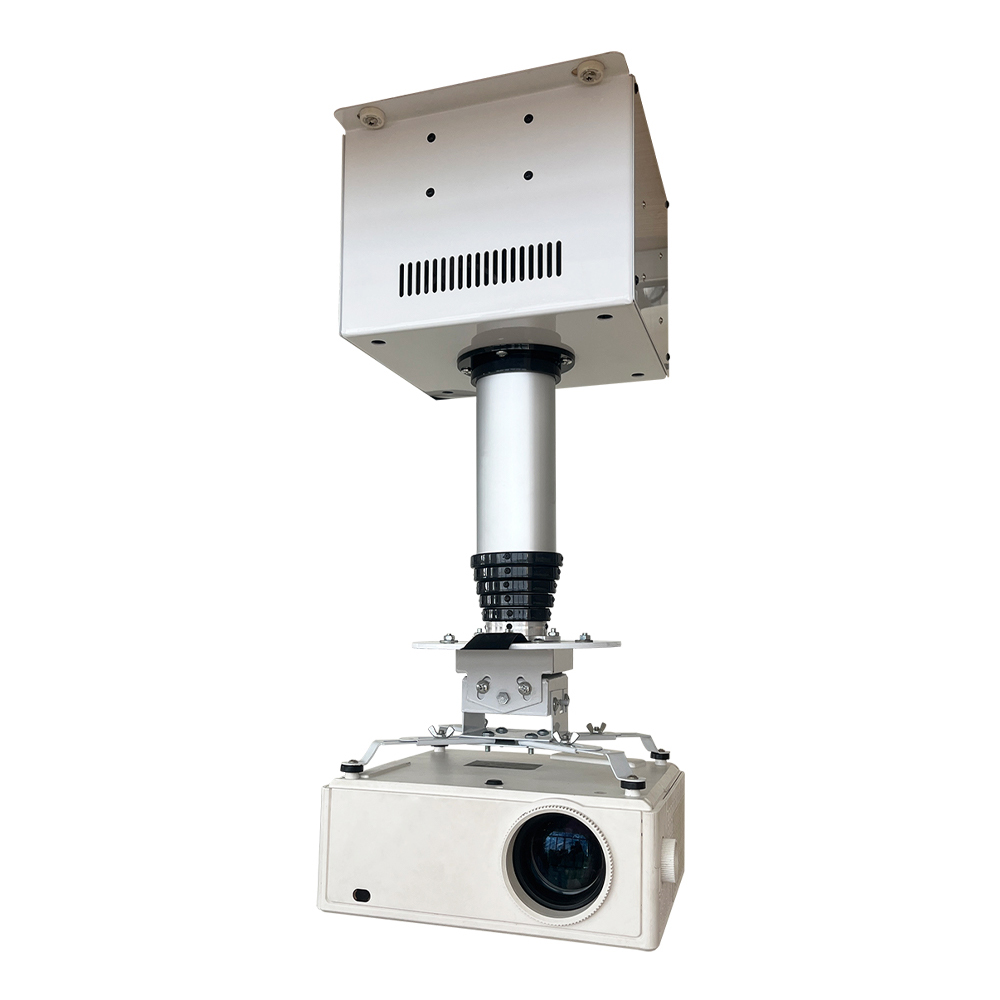

5. Multi-Scene Compatibility: Ideal for projectors and monitoring cameras.

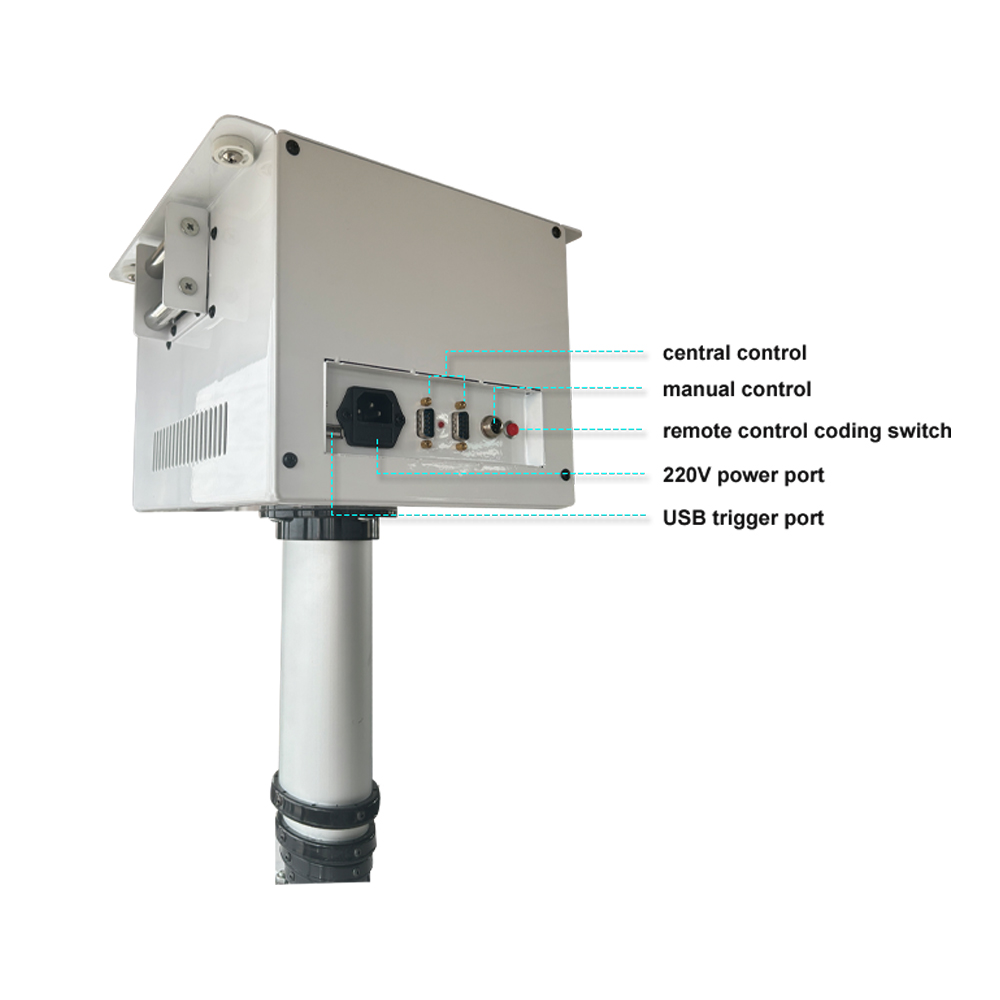

6. Smart Control Integration: Compatible with manual, remotes and central control systems.
