Projector Bracket DJ1 series
Projector bracket DJ1 Series is made of high-strength aviation aluminum alloy, lightweight and strong. With anodizing coloring technology, it is scratch-resistant, not easy to fade. Four claws are adjustable, suitable for universal projectors. With innovative design. Easy to assembled and installed. The length, height and angle are adjustable.The mount can be 360 degree horizontal rotating and ±15 degree vertical tilting. The cable can be hide in the tube. Suitable for 90% projectors in wall or ceiling mounted.

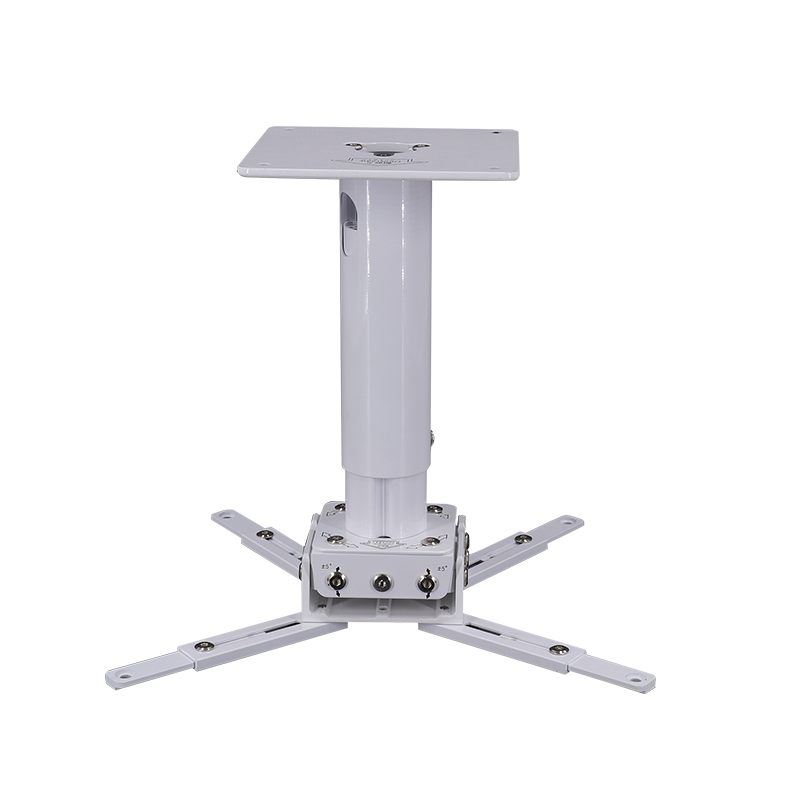

Colors Optional: Black or White
Product Advantages
The DJ1 series projector bracket is a line of mounting brackets designed to securely attach a projector to a ceiling or wall. These brackets are typically used in home theaters, classrooms, conference rooms, and other settings where a projector needs to be installed in a fixed position.
The DJ1 series projector bracket is made from durable materials such as steel or aluminum, and it is designed to support projectors of various sizes and weights. Some models in the DJ1 series feature adjustable arms or tilting mechanisms, which allow you to fine-tune the position of your projector for optimal viewing.
When selecting a DJ1 series projector bracket, it’s important to consider factors such as the size and weight of your projector, the location where it will be installed, and the type of mounting hardware you will need. You may also want to consult with a professional installer to ensure that your projector is properly mounted and aligned for optimal performance.

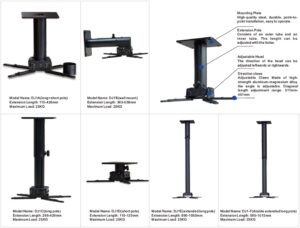

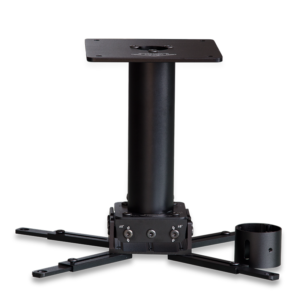

DJ1-A

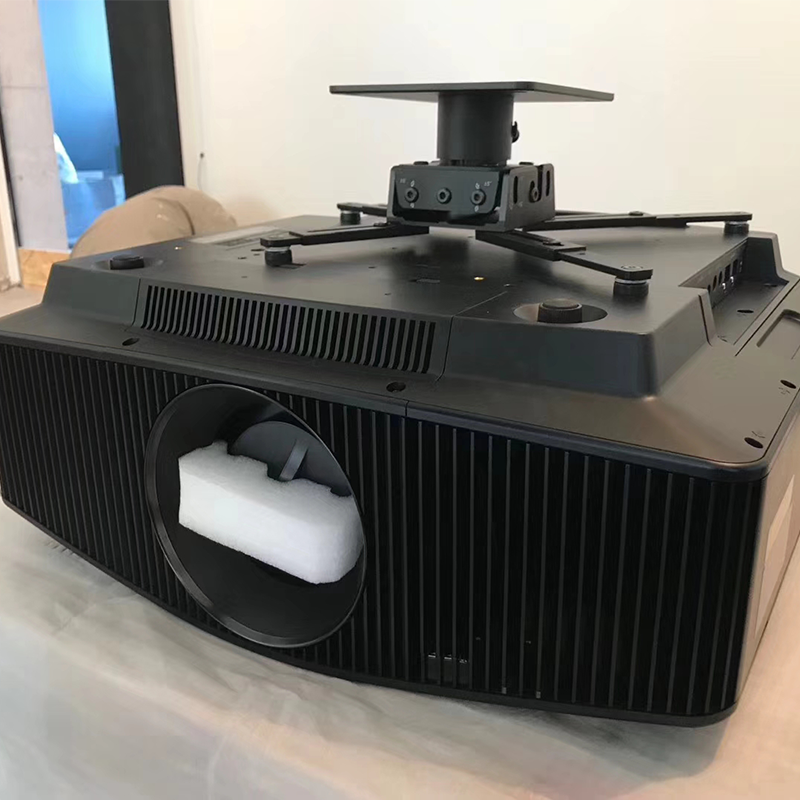

Ceiling mounted bracket with the long and short pipes Extension Length: 110-426mm
Maximum Load: 25KG

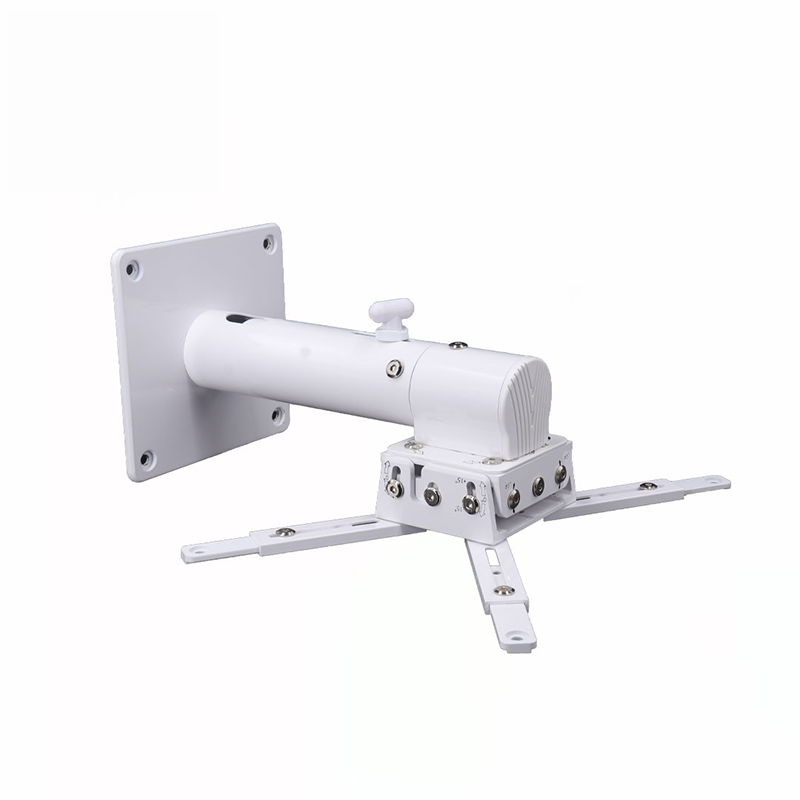

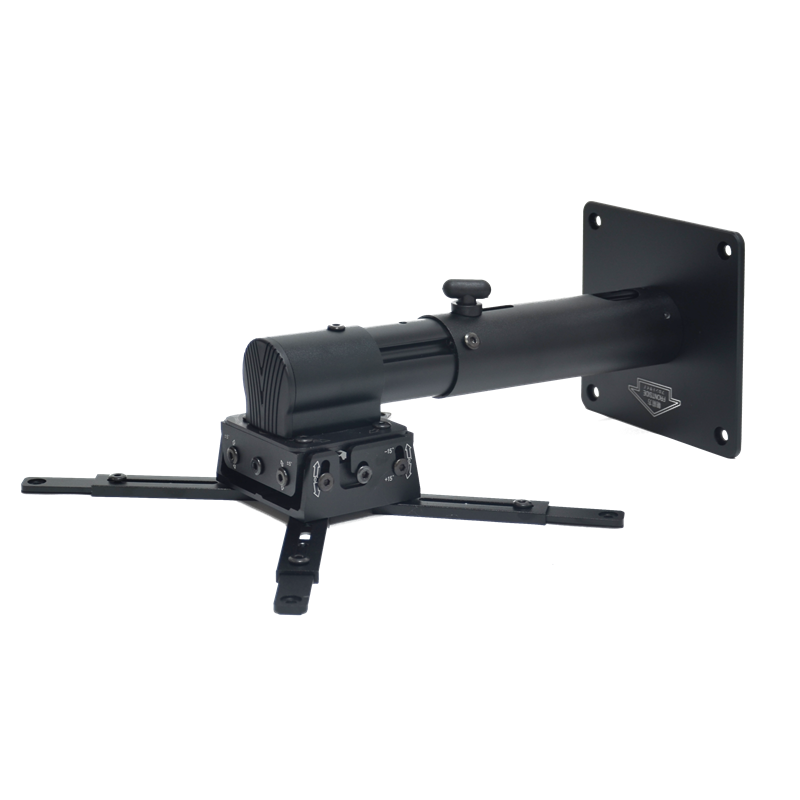

DJ1-B

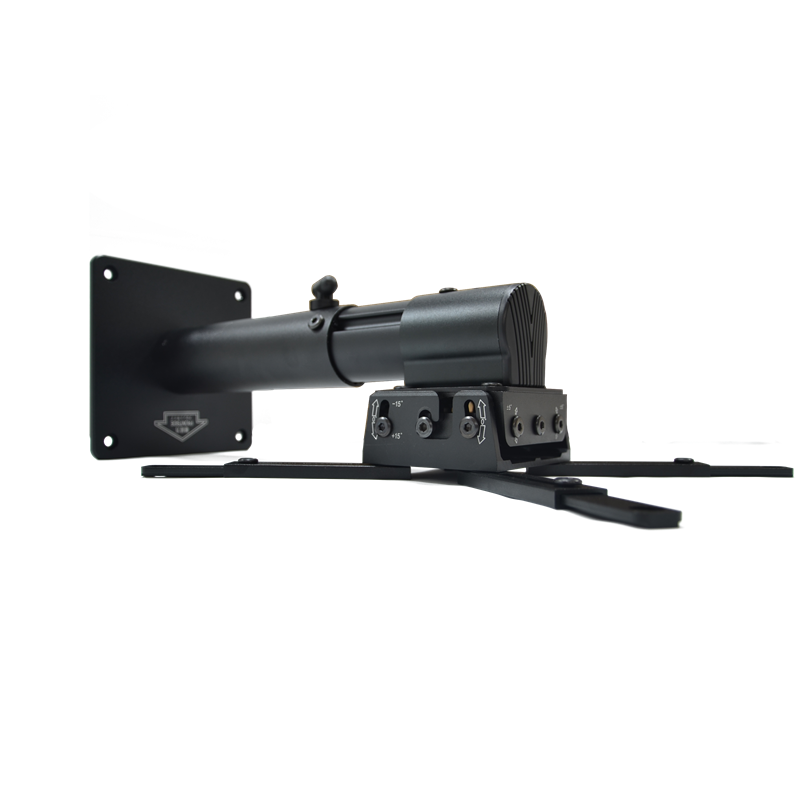

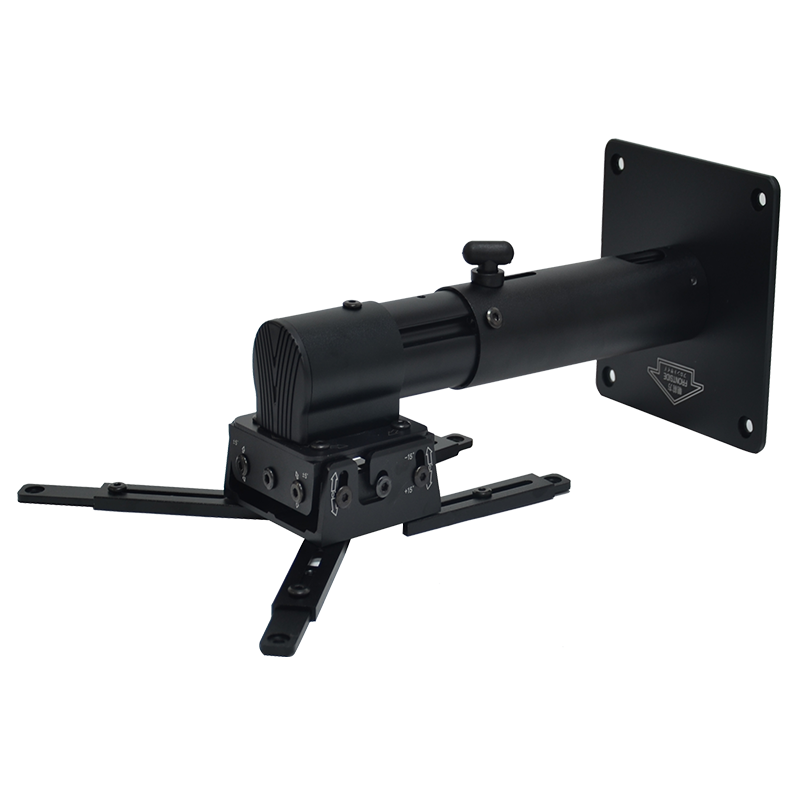

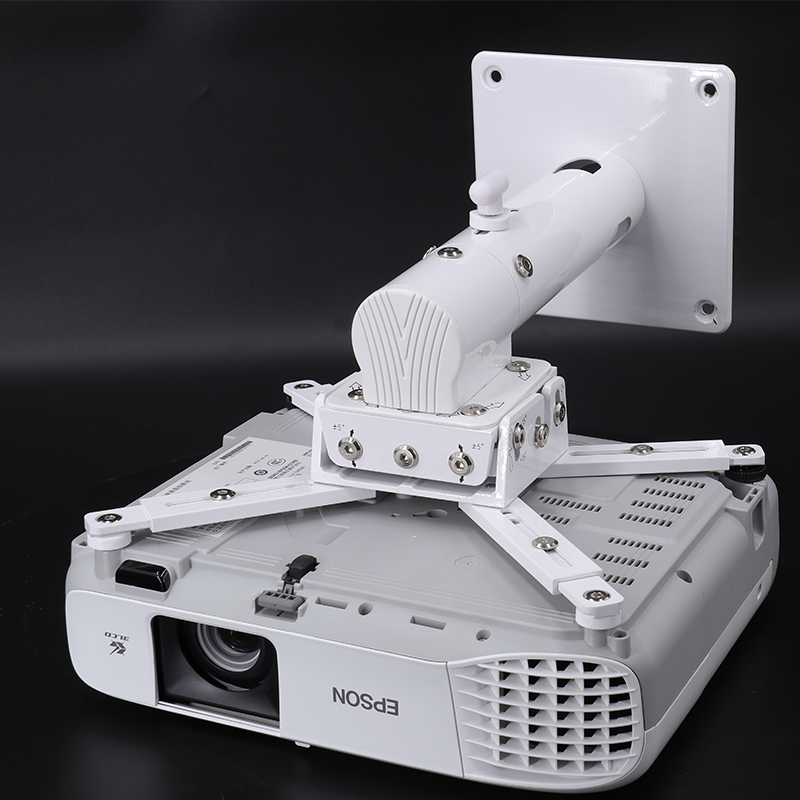

Wall mounted bracket with an adjustable long pipe. Extension Length: 363-538mm
Maximum Load: 20KG
DJ1-C

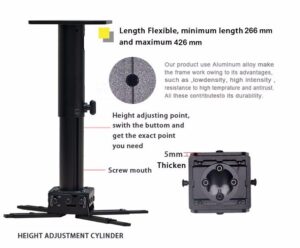

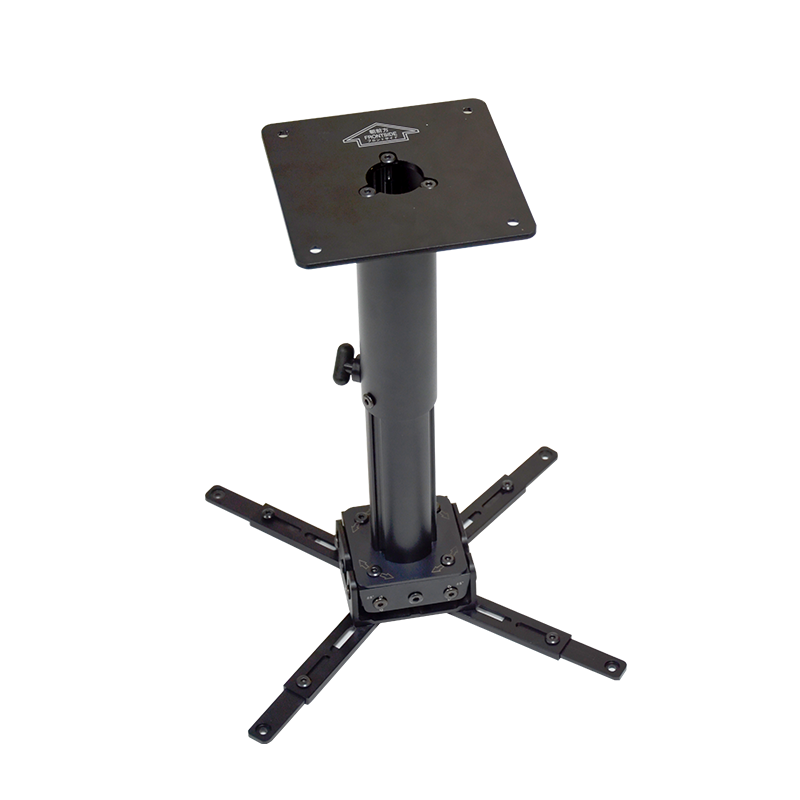

Ceiling mounted bracket with an adjustable long pipe. Extension Length: 266-426mm
Maximum Load: 25KG

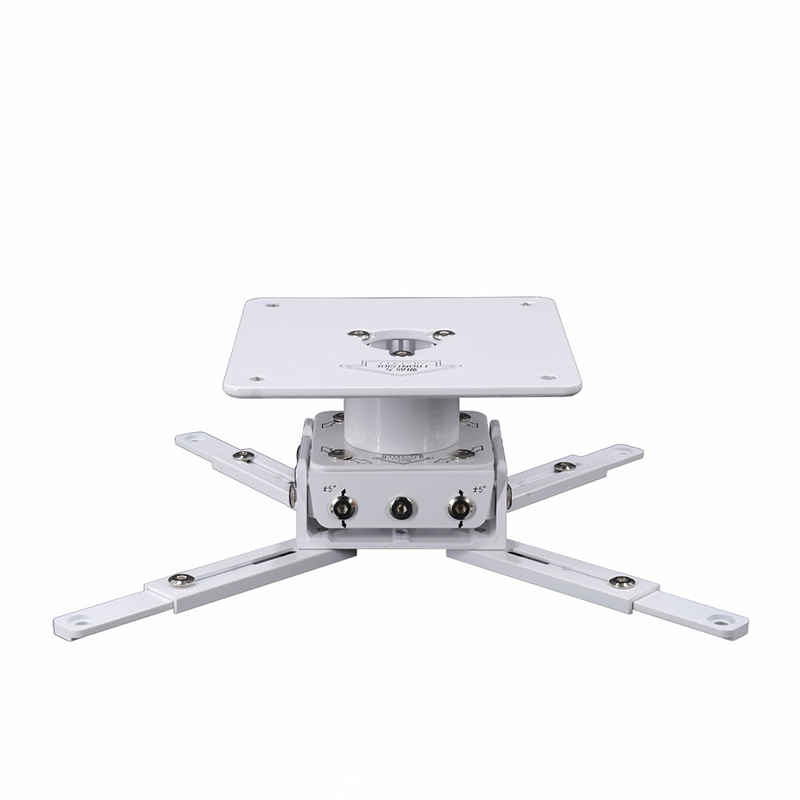

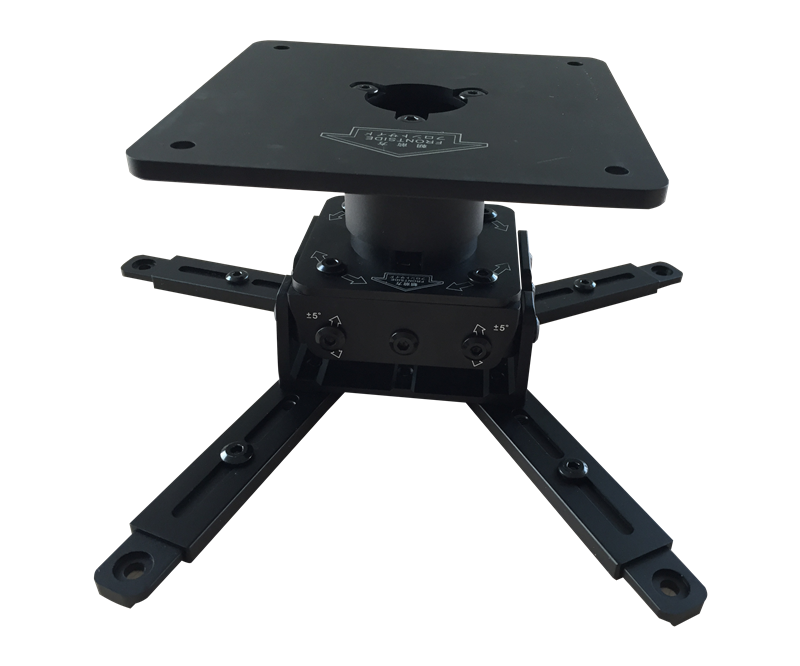

DJ1-D

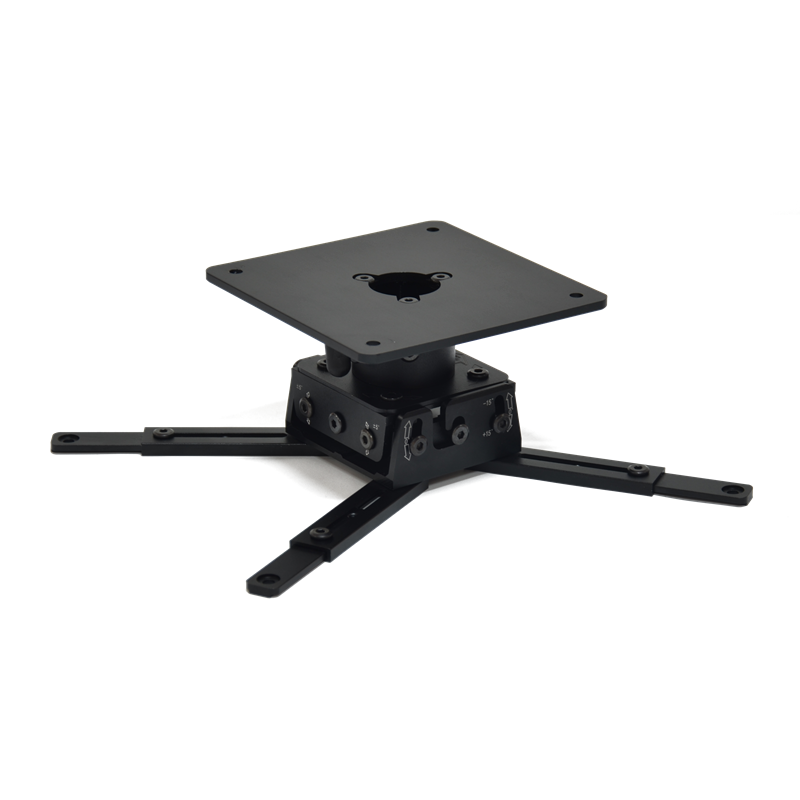

Ceiling mounted bracket with an adjustable short pipe. Extension Length: 110-125mm
Maximum Load: 25KG

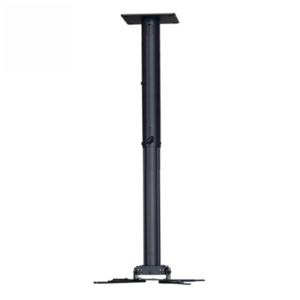

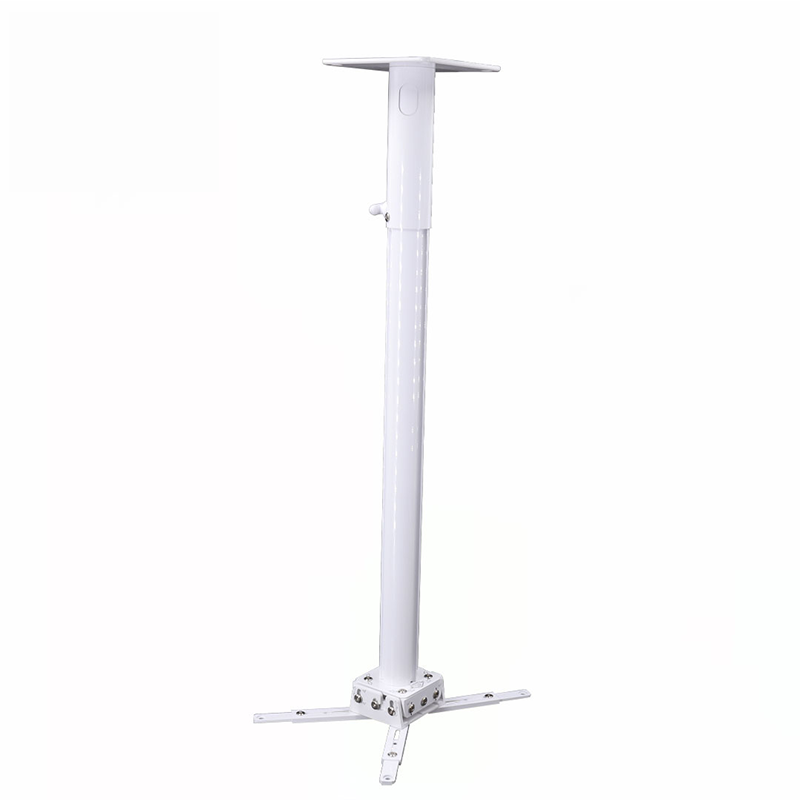

DJ1-E

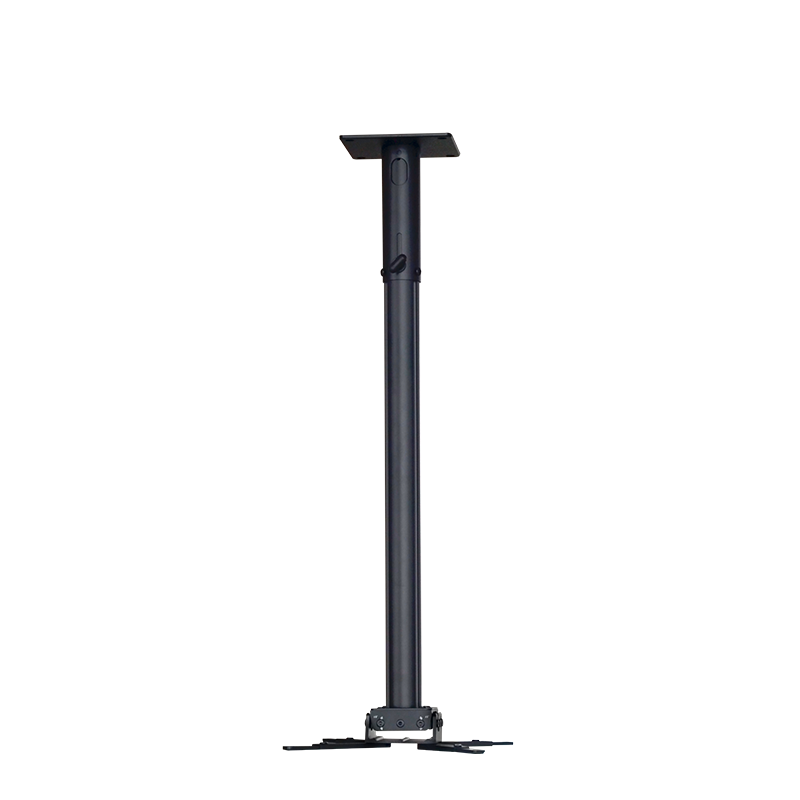

Ceiling mounted bracket with an extended long pipe. Extension Length: 890-1050mm
Maximum Load: 25KG
DJ1-F
Ceiling mounted bracket with double extended long pipe. Extension Length: 565-1015mm
Maximum Load: 25KG
Specificationa:
| Item No. | Tilt Left or Right |
Tilt Up or Down |
Min Height (mm) |
Max Height (mm) |
Mounting Holes Distance (mm) | Packing Size L*W*H (mm) |
NW (kg) |
GW (kg) |
| DJ1-A | ±5° | ±15° | 110 | 426 | 311-451 | 340*180*135 | 1.72 | 2.17 |
| DJ1-B | ±5° | ±15° | 363 | 538 | 311-451 | 340*180*135 | 1.86 | 1.86 |
| DJ1-C | ±5° | ±15° | 266 | 426 | 311-451 | 340*180*135 | 1.6 | 2.1 |
| DJ1-D | ±5° | ±15° | 110 | 125 | 311-451 | 340*180*135 | 1.42 | 1.88 |
| DJ1-E | ±5° | ±15° | 890 | 1050 | 311-451 | 920*205*80 | 2.4 | 3.5 |
| DJ1-F | ±5° | ±15° | 565 | 1015 | 311-451 | 930*410*425 | 3.0 | 4.0 |
Features
Phone:+86-20-39133522
Cooperation of several logistics companies
Support multiple payment methods
100% Quality assurance
-
- Adjustable arms: Some models in the DJ1 series feature adjustable arms that allow you to fine-tune the position of your projector for optimal viewing. This feature can be especially useful if you need to adjust the projector’s angle or distance from the screen.
- Tilting mechanism: Many DJ1 series projector brackets come with a tilting mechanism that allows you to adjust the angle of the projector up or down. This can be helpful if you need to compensate for an uneven ceiling or adjust the image to fit the screen.
- Easy installation: The DJ1 series projector bracket is designed for easy installation, with most models coming with all the necessary mounting hardware and instructions. This can save you time and effort when setting up your projector.
- Durable materials: The DJ1 series projector bracket is typically made from durable materials such as steel or aluminum, which are designed to hold up to the weight of the projector and resist wear and tear over time.
- Compatibility: The DJ1 series projector bracket is designed to be compatible with a range of projectors, so you can choose the model that best fits your needs and be confident that it will work with your equipment.
