High quality in ceiling customizable motorized projector lift EDJ10
It adopts good quality aluminum alloy scissor structure and ultra short tubular motor, beautiful, safe and reliable.

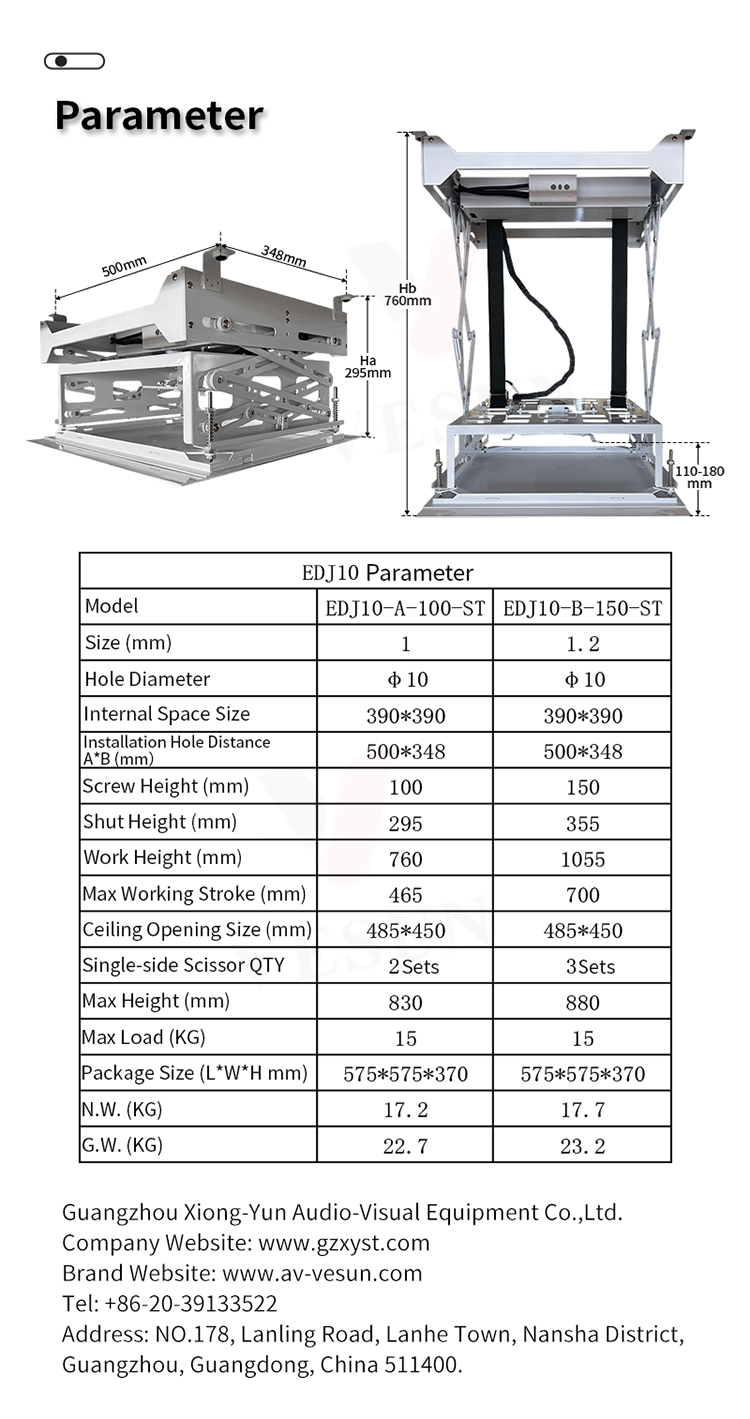

Specifications
| Model | EDJ10-A-100-ST | EDJ10-B-150-ST |
| Hole Diameter | φ10mm | |
| Inner Space | 390*390mm | |
| Installation Hole Distance | 500*348mm | |
| Screw Height | 100mm | 150mm |
| Close Height | 295mm | 395mm |
| Work Height | 760mm | 1055mm |
| Max Height | 830mm | 880mm |
| Max Working Stroke | 465mm | 700mm |
| Ceiling Opening Size | 485*450mm | |
| Single-side Scissor Qty | 2 sets | 3 sets |
| Max Load | 15kg | |
| N.W. | 17.2kg | 17.7kg |
| G.W. | 22.7kg | 23.2kg |
| Packing Size | 575*575*370mm | |
Features
1. Motorized Lifting: Adjust projector height via electric motor for effortless operation.
2. Quiet Operation: Low-noise motor ensures minimal disturbance during movement.
3. High Load Capacity: Compatible with various projector models and weight requirements.
4. Remote Control: Operate via wireless remote or integrated smart systems.
5. Hidden Installation: Retracts projector into the ceiling when not in use for a clean space.
